    Default diamond tip engraving

    I'm about to order a 90 degree diamond drag engraving bit blade for cnc drag engraving. Is anybody familiar, does anybody know if successive 'cuts' will produce / produce a deeper engraving? Or should I use a 120 degree bit? Thank you

  2. 05-23-2015, 06:27 AM#2
    Join Date
    Dec 2008
    Country
    UNITED STATES
    State/Province
    New York
    Posts
    10,403
    Post Thanks / Like
    Likes (Given)
    0
    Likes (Received)
    2720

    Default engraving

    Quote Originally Posted by mofosheeeView Post
    I'm about to order a 90 degree diamond drag engraving bit blade for cnc drag engraving. Is anybody familiar, does anybody know if successive 'cuts' will produce / produce a deeper engraving? Or should I use a 120 degree bit? Thank you
    .
    been my experience diamond breaks off easy. usually carbide is hard enough. depth control or a spring loaded engraver is needed. if even .005" off it is easy to snap point off
    .
    i made s holder to hold dremel electric engraver points which are relatively cheap
    .
    deep lines i just use a rotating ball end mill

  3. 05-23-2015, 07:39 AM#3
    Join Date
    Oct 2002
    Country
    UNITED STATES
    State/Province
    Florida
    Posts
    1,229
    Post Thanks / Like
    Likes (Given)
    177
    Likes (Received)
    307

    Default

    My drag engraving is all done with manual machines. When I want a wider line, I go over the engraving multiple times. I find the diamond points fragile and easy to damage if excessive pressure is used, or if one strikes an object while moving the stylus out of the way. I think that a spring or weight loaded stylus would be necessary for CNC drag engraving. Try multiple passes to see the effect.

    Jim
    Jim

  4. 05-23-2015, 07:56 AM#4
    Join Date
    Sep 2005
    Location
    South Carolina USA
    Posts
    4,476
    Post Thanks / Like
    Likes (Given)
    2154
    Likes (Received)
    1311

    Default

    A bit off subject, but I use the small diamonds called Phono Points to engrave numbers on the end of hard ejector pins. Do it in the CNC, with spindle at 2000 or so. Shallow passes, they last well.

  5. 05-23-2015, 12:26 PM#5
    Join Date
    Mar 2011
    Location
    anaheim, ca
    Posts
    464
    Post Thanks / Like
    Likes (Given)
    45
    Likes (Received)
    121

    Default

    Spring loaded diamond drag Engraver are awesome. 120 for AL or light lines [marks] in others. 90 for steels. I had to engrave a lot in tool steel (2000 pieces) and used 400ipm plunge and 100ipm drag for letters 0.05" tall and had great resulds.

    AL tends to leave a bur if going deeper, but the 120 helps some... not entirely though

  6. 05-23-2015, 12:27 PM#6
    Join Date
    Mar 2011
    Location
    anaheim, ca
    Posts
    464
    Post Thanks / Like
    Likes (Given)
    45
    Likes (Received)
    121

    Default


  7. 05-23-2015, 01:03 PM#7
    Join Date
    May 2008
    Country
    CANADA
    State/Province
    British Columbia
    Posts
    605
    Post Thanks / Like
    Likes (Given)
    858
    Likes (Received)
    230

    Default

    Quote Originally Posted by PriddyShiddyView Post
    So did mine. 120 degree with their spring loaded holder. Beautiful crisp engraving. I plunge at 250 and feed at 120 with the spindle off or at 50rpm depending on how lazy I'm feeling. Some of the best customer service I've had. They made a special trip to the post office to ship it to me USPS instead of UPS. UPS does their very best to screw Canadians at the border.
    Jordy

  8. 05-23-2015, 02:05 PM#8
    Join Date
    Dec 2012
    Location
    Northern Kalifornia
    Posts
    22
    Post Thanks / Like
    Likes (Given)
    3
    Likes (Received)
    3

    Default

    In 7075 aluminum, spring loaded drag engraver multiple passes using CNC, with or without rpm?????? Will multiple passes give more depth?
    So I'm understanding that a 90 degree diamond tip drag engraver can produce extremely fine and shallow lines that can be rubbed out = not desirable.
    I've had some experience with the .005 rotary tip engraving bits.....results ranging from excellent to ok. Ok occurs when tip breaks mid job run. Looking for consistency

  9. 05-23-2015, 02:27 PM#9
    Join Date
    May 2008
    Country
    CANADA
    State/Province
    British Columbia
    Posts
    605
    Post Thanks / Like
    Likes (Given)
    858
    Likes (Received)
    230

    Default

    I've used them in steel too. Whichever angle you get you won't be rubbing it off with anything but abuse. Just use a strong spring in the engraver and you'll be fine
    Jordy

  10. 05-23-2015, 04:31 PM#10
    Join Date
    Mar 2011
    Location
    anaheim, ca
    Posts
    464
    Post Thanks / Like
    Likes (Given)
    45
    Likes (Received)
    121

    Default

    90 degree is deeper than 120 since the force is more focused on 90 so more psi

    You can adjust the spring rate and tension and depth. I ended up getting some 2x stronger than their strongest springs for the tool steeluploadfromtaptalk1432416598287.jpguploadfromtaptalk1432416689271.jpg

  11. 05-23-2015, 10:02 PM#11
    Join Date
    Nov 2011
    Location
    Idaho USA
    Posts
    208
    Post Thanks / Like
    Likes (Given)
    3
    Likes (Received)
    42

    Default

    Where did you purchase the spring loaded engrave and diamond bits from?

  12. 05-24-2015, 10:47 AM#12
    Join Date
    Dec 2012
    Location
    Northern Kalifornia
    Posts
    22
    Post Thanks / Like
    Likes (Given)
    3
    Likes (Received)
    3

    Default

    Purchased from George race on eBay, 1/8" spring loaded brass

  13. 05-27-2015, 02:35 PM#13
    Join Date
    Aug 2010
    Location
    Minnesota USA
    Posts
    295
    Post Thanks / Like
    Likes (Given)
    1
    Likes (Received)
    56

    Default

    Quote Originally Posted by mofosheeeView Post
    Purchased from George race on eBay, 1/8" spring loaded brass
    Can you post a link?

    Ken

  14. 05-27-2015, 05:01 PM#14
    Join Date
    Jun 2009
    Country
    UNITED STATES
    State/Province
    California
    Posts
    167
    Post Thanks / Like
    Likes (Given)
    133
    Likes (Received)
    50

    Default

    I grabbed my diamond drag from Tormach. Was right around $65 with the tip, holder and extra springs. Most likely made overseas unfortunately but it works well.

    I know its advised against but I run mine with the spindle stopped. Tried spinning and it left a swirl pattern on everything. Multiple passes help with depth but if you need something "deep" I wouldn't use a drag engraver.

Quick NavigationGeneralTop
  • Site Areas
  • Settings
  • Private Messages
  • Subscriptions
  • Who's Online
  • Search Forums
  • Forums Home
  • Forums
  • Manufacturing Today
    1. CNC Machining
    2. CAD / CAM
    3. Additive Manufacturing/3D Printing
    4. Robots and Automation
    5. Manufacturing in America and Europe
    6. Shop Management and Owner Issues
    7. General
    8. Material Handling and Rigging
    9. Fabrication: CNC Laser, Waterjet, Plasma, Welding & Fab
    10. EDM Machining
    11. Abrasive Machining
    12. Metrology
    13. Woodworking and Woodworking Machinery
    14. General - Archive
  • Specific Machine Forums
    1. Haas
    2. Makino
    3. Mazak
    4. Okuma
    5. Baileigh [Sponsored Forum]
    6. Toyoda
    7. DMG MORI, Gildemeister, Maho CNC
    8. Deckel, Maho, Aciera, Abene Mills
    9. Schaublin, Cazeneuve, Weiler, Graziano, Mori Seiki Lathes
    10. Cincinnati Milacron, Kearney Trecker, VN, USA Heavy Iron
    11. Bridgeport and Hardinge Mills and Lathes
    12. Monarch Lathes
    13. South Bend Lathes
    14. Warner & Swasey Alumni
  • Open Discussion
    1. Machine Reconditioning, Scraping and Inspection
    2. Antique Machinery and History
    3. Gunsmithing
    4. Transformers, Phase Converters and VFD
    5. Greatest Hits and Links
  • Commerce
    1. Career Opportunities
    2. Career Opportunities Wanted
    3. Manufacturing Resource
    4. Machinery for Sale or Wanted
    5. Tooling, Parts and Accessories For Sale or Wanted
  • Machinery Manual, Brochure and Photo Archives
    1. Machinery Manuals & Brochures
    2. Member and Shop Photos
    3. Machinery Photos
  • Forum features
    1. Images and Links
    2. Interesting Facts

Posting Permissions

  • You may not post new threads
  • You may not post replies
  • You may not post attachments
  • You may not edit your posts
  •

Forum Rules

Notice

This website or its third-party tools process personal data (e.g. browsing data or IP addresses) and use cookies or other identifiers, which are necessary for its functioning and required to achieve the purposes illustrated in the cookie policy. To learn more, please refer to the cookie policy. In case of sale of your personal information, you may opt out by sending us an email via our Contact Us page. To find out more about the categories of personal information collected and the purposes for which such information will be used, please refer to our privacy policy. You accept the use of cookies or other identifiers by closing or dismissing this notice, by scrolling this page, by clicking a link or button or by continuing to browse otherwise.

Sours: https://www.practicalmachinist.com/vb/

This Diamond-Tipped Bit Allows You Engrave Steel, Metal, Glass, and More with Your CNC Router or Mill

diamond-engraving-bit-product-shotI stumbled across this diamond drag engraving bit when I was looking for some other cutters for my CNC. This bit allows you to engrave hard materials like stone, steel, and glass, or soft materials like plastic, aluminum, and brass. You can even score glass for cutting.

The special bit measures 3-3/4″ long and doesn’t spin like a regular bit. It chucks into a 1/4″ collet and is designed to be dragged across your work material by the CNC – kind of how you would use a manual scriber.

Yes, that’s correct – your spindle must be OFF when you use this drag engraving bit.

The diamond tip is spring-loaded, to apply constant pressure on the material. Since it is spring-loaded, the bit can compensate for a waste board or materials that aren’t perfectly flat. As it is dragged, the bit will engrave a line approximately 0.005″ wide.

diamond-engraved-glass-mirror

When you buy the bit, you get the spring-loaded holder, high and low pressure engraving springs, the 120° diamond tip, a hex wrench for replacing the tip, and detailed instructions on how to set up your CNC. You can also purchase a 90° tip separately, which is recommended for engraving coated materials.

The bit will run you $180 at Widget Works Unlimited and the cheapest shipping method listed was about $9. There’s also a 1/2″ shank version for the same price.

Buy Now

If you are curious about seeing a bit like this in use, check out this video from Jim McPherson. He’s using a similar diamond drag bit to engrave a name on a knife handle. Skip ahead to about 2 minutes if you just want to see the bit in action.

Sections: CNC Machines, Made in USA, Power Tool AccessoriesTags: CNC

Sours: https://toolguyd.com/cnc-diamond-drag-engraving-bit/
  1. Best powershell book 2015
  2. Seth fire emblem
  3. Kao camp grounds
One of the cool things you can do with a CNC machine is engrave metals and hard plastics using a drag bit, which is a pointed bit with a cheap, industrial-grade diamond. Unlike normal CNC bits, a drag bit doesn't spin while it works. Instead, it presses against the material as the machine drags it along the surface. The results look really cooland it's useful for engraving items like Zippo lighters

Unfortunately, drag big holders are too expensive (over $150) for most hobbyists that aren't using them to bring in business. Interestingly, the bits themselves are cheap (~$10). So I set about to make a budget-friendly holder.

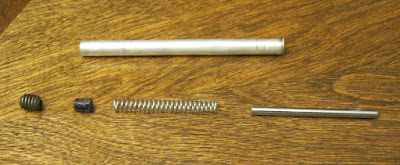

My first attempt used a 1/4" aluminum tube capped with a small washer to prevent the bit from falling out. A piece of plastic goes between the spring and bit. The tube was capped with a screw to allow the bit to be replaced.


I put the entire tube in the router as though it were a 1/4" CNC bit and turned the router off to prevent spinning. A couple samples in scrap acrylic yielded a mixed success. The general shapes are visible, but the tube was too long with too much flex.

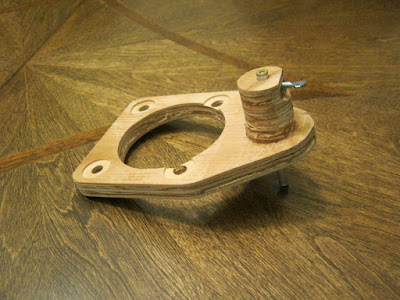

I reused the design from my dust bootto mount a larger support to the machine. The length of wood prevents flexing.

A thumb screw holds the tube in place. In this picture, you can see how the washer allows only the tip of the drag bit out. It lacks the vertical give of a professional holder, so it only works on flat  work surfaces.


The new tests are much sharper! This is the level of quality I was striving for. You can see how the cross hatch pattern looks less scribbly.


My first project with the new drag bit was to make a replacement piece for a board gameI enjoy. The original game piecewas large, flimsy, and blocked that players' view of the spaces behind. For scale, the green bug on top is about the size of a quarter.
